Terminal program for Windows

Which Windows terminal program can be used to connect to the command-line interface (CLI) of a router using the Telnet/SSH protocol?

If you wish to connect to a network device via Telnet, you can use the Telnet service from the Windows operating system. Further information on starting the Telnet service: Enabling Telnet and TFTP client in Windows.

In addition to the Telnet service built into Windows, you can use any other terminal program, for example, PuTTY. You can download it from the following website: http://putty.org/

This terminal program supports connection via Telnet and SSH.

PuTTY does not require installation; you can save the putty.exe file in a folder you like and run it. After you run it, you will see a window with the settings.

The following are examples of establishing a Telnet and SSH connection to your device.

  1. Example 1. Creating a connection to a device via Telnet to operate it through the command-line interface (CLI).

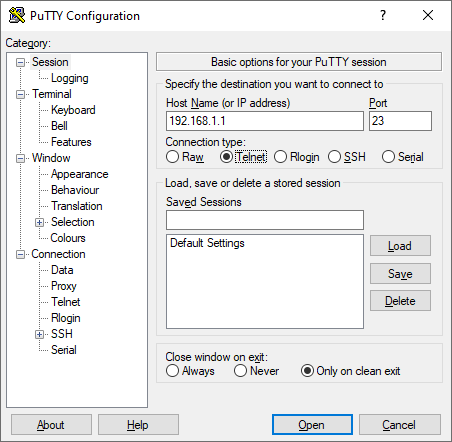

    In the Connection type field, select the connection type Telnet. Enter in the Host Name (or IP address) field the network name or IP address of the device (by default for Keenetic routers, it is 192.168.1.1) and in the Port field the port number on which the connection is to be made (by default the Telnet protocol uses port 23).


    After pressing the Open button, you will be prompted for a login and password to log in to the device. Enter your administrator account credentials.

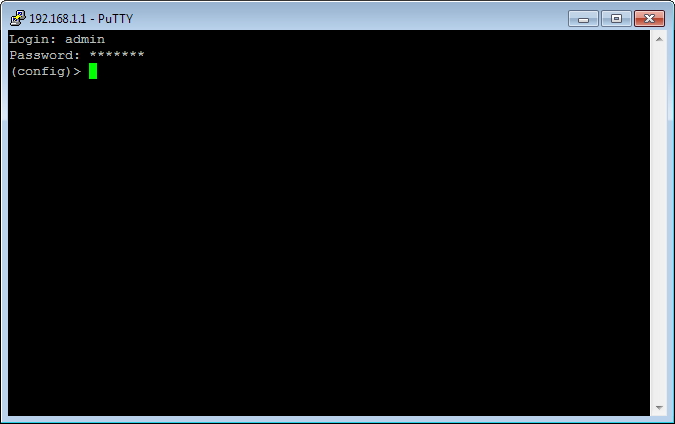

    Once the administrator login and password have been successfully entered, a command line prompt will appear, and you will be able to operate the device via the command-line interface (CLI).

  2. Example 2. Creating a connection to the device via SSH.

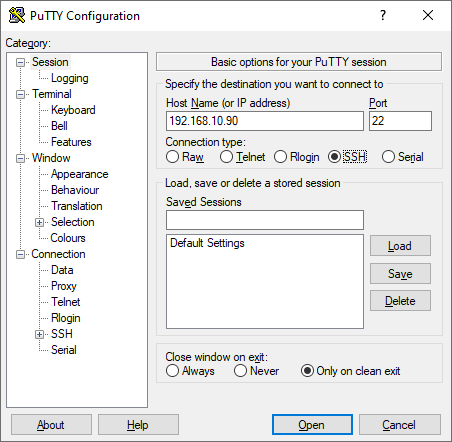

    In the Connection type field, select the connection type SSH. Enter in the Host Name (or IP address) field the network name or IP address of the device (by default for Keenetic routers, it is 192.168.1.1), and in the Port field, the port number on which the connection will be made (by default the SSH protocol uses port 22).

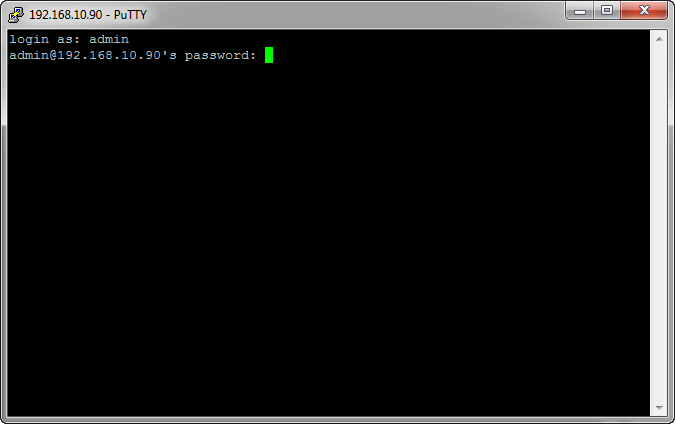

    After pressing the 'Open' button, you will be prompted for a login and password to log in to the device. Enter your administrator account credentials.

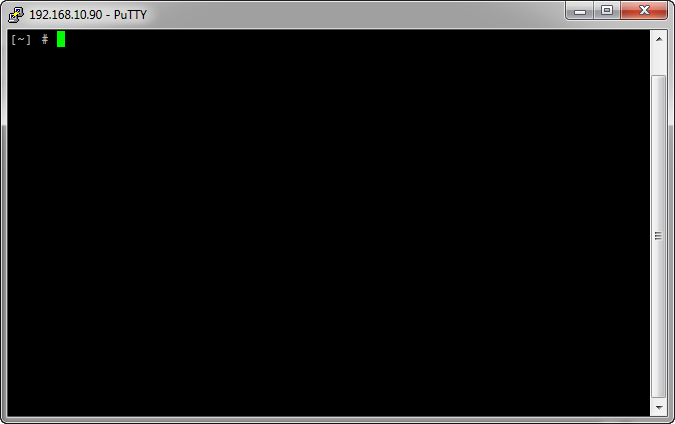

    After successfully entering the administrator login and password, a command line prompt will appear, and you will be able to operate the device via the command-line interface (CLI).


Note

If you want the PuTTY terminal program to record a session to a text file (all commands executed and their results will be recorded), go to Session > Logging and set it to All session output. In the Log file name field, you can specify the name of the file (putty.log by default) into which the session will be logged.
