KeeneticOS 4.2

What’s new?

Welcome to KeeneticOS version 4.2! As usual, we have several performance improvements and bug fixes, but our main focus for this update is to introduce the new Web Interface and further improve support for the IPv6 protocol in various KeeneticOS services.

The new Web Interface has a refreshed look, with light and dark themes to choose from, and carefully selected usability enhancements. We've moved to an updated framework that supports modern security enhancements.
It is now possible to update KeeneticOS on all devices in the Wi-Fi system with a single click. In addition, the Autoupdate function automatically manages the updates of the connected extenders according to the schedule of the main router.
Clients connecting to the Home segment of the network are now automatically registered by default, improving security and ease of management.
The new Segment Default Policy option improves Internet access management for network clients. By default, a registered client will follow the connection policy associated with the network segment it is connecting to. For example, you can set up a separate Wi-Fi network at home with the same name as your office network and route its traffic to a VPN connection to your office. Then, when working from home, simply switch to the office Wi-Fi network to teleport immediately.
The new OpenConnect VPN server and client are now available. Connect networks or access your network remotely using free applications available for Android or iOS.

We value your support and participation in our community. Your valuable feedback helps us to continually improve Keenetic. If you have any questions, want to discuss the beta, report issues, or contact our development team, please visit our forum. Thank you for choosing Keenetic!

KeeneticOS 4.2.5

20/12/2024

Fixed

The following fixes have been applied to the Web interface.
- Fixed issue with loss of management when changing the SSID in the Home segment on the wireless extender. [NWI-3983]
- Fixed the library update status display for the Media server application. [NWI-3844] [Forum topic]
- Fixed the 2FA code input on the NextDNS account popup. [NWI-3925] [Forum topic]
- Fixed missing spaces in knowledgebase article links. [NWI-3929] [Forum topic]
- Fixed the "close" icon visibility for pop-up notifications. [NWI-3946] [Forum topic]
- Fixed the display of information on pie charts when hovering over them on the Traffic Monitor page. [NWI-3947]
Fixed a reboot issue caused by MAC address list overflow in Wireless ACL whitelist mode. [SYS-1253]
Fixed the application data inconsistency that caused issues with the Application traffic analyser page. [NDM-3602] [Forum topic]
Fixed status of blocked clients assigned to the Segment default policy (conform). [NDM-3607]
An issue that caused the system failed [0xcffd0532], unable to write to control file error message to appear in the System log has been fixed. [NDM-3614] [Forum topic]
Fixed an issue where the System log would show there are errors in config when the OpenConnect VPN server is active. [NDM-3627] [Forum topic]

KeeneticOS 4.2.4

10/12/2024

Fixed

The following fixes have been applied to the Web interface.
- Fixed selection of networks with WPA3 protection from the list of available networks on the Wireless ISP page. [NWI-3937]
- Fixed the incorrect Applications not installed status on the System Dashboard page. [NWI-3798]
- Fixed tooltips display on the Traffic Monitor page in the Web interface. [NWI-3894]
- Fixed the display of certain usernames in the User Accounts configuration popup. [NWI-3898]
- Fixed the sorting of the Uptime column in the Mesh Wi-Fi System nodes table. [NWI-3815]
- Fixed the flickering when loading the Home segment page. [NWI-3820]
- Fixed menu section headings. [NWI-3824]
- Fixed tooltips on the Traffic Monitor page in mobile view. [NWI-3825]
- Fixed the auto-completion on the /webcli command line interface page. [NWI-3791]
- Fixed the display of long strings in the built-in search results. [NWI-3866]
Fixed issue with incorrect Wi-Fi state after a system restart with the radio off by pressing a button. [SYS-1239]
Fixed an incorrect operation timeout in the DNS proxy service when waiting for the upstream DNS server to respond under certain conditions. [SYS-1245]
Fixed a bug where WireGuard VPN would attempt to reconnect after the underlying interface was shut down. [NDM-3560]
The VPN Server's clients (PPTP, SSTP and OpenConnect) will now access the Internet according to the connection policy of the local network to which the server is connected. [NDM-3563]
Fixed an issue with incorrect WireGuard VPN uptime under certain conditions. [NDM-3567] [Forum topic]

KeeneticOS 4.2.3

12/11/2024

New

Fixed

Fixed an issue where the SFTP connection to the SFTP Server would hang after transferring 476 megabytes. [SYS-1240]
Fixed a KeenDNS issue with Internet access to web applications with the No access (security-level private) setting enabled. [NDM-3479]
Fixed an issue with setting speed auto mode for SFP/MDI combo port. [NDM-3537]
Fixed an issue with the OpenConnect VPN client reconnecting when the remote OpenConnect VPN server is restarted. [NDM-3532]
The following fixes have been applied to the Web interface.
- Fixed problem where System Dashboard cards were not editable on mobile screens. [NWI-3865]
- Removed domain-specific DNS entries from the Signal levels dialog. [NWI-3784]
- Fixed an issue with downloading of packet capture files when using a USB drive as a storage location. [NWI-3790]
- Optimized the internal logic of the System log popup window. [NWI-3813]
- Fixed tooltip display for Static IP fields. [NWI-3818]
- Fixed the view mode selector behaviour on the Applications page. [NWI-3827]
- Fixed JS errors on the General System Settings page. [NWI-3840]
- Fixed the display of the Media library folder path for the Media server application. [NWI-3852]

KeeneticOS 4.2.2

28/10/2024

New

Improved

The improvements have been applied to the Web interface.
- Improved the Active Connections table. [NWI-3703] [Forum topic]
- Changed colours on the Traffic monitor charts for better visibility and contrast. [NWI-3699] [Forum topic]
The maximum Username length for Proxy connections increased to 128 characters. [NDM-3512]
The DDNS service now re-attempts to update the Domain name resolution 30 seconds after a failed attempt. [NDM-3513] [Forum topic]
Enabled LLDP multicast in addition to broadcast announcements to improve compatibility with managed Ethernet switches. [SYS-1214]

Fixed

The following fixes have been applied to the Web interface.
- Fixed the position of the Other management options link on mobile devices. [NWI-3722] [Forum topic]
- Fixed an issue where the USB disk would disappear from the USB Devices section when unmounting all partitions. [NWI-3762]
- Fixed tooltips for Wi-Fi toggles on Extenders in the Mesh Wi-Fi system. [NWI-3763] [Forum topic]
- Fixed the scrollbar colour for the Dark theme. [NWI-3764] [Forum topic]
- Fixed the scrolling on mobile devices. [NWI-3768] [Forum topic]
- Fixed Applications availability conditions. [NWI-3770] [Forum topic]
- Fixed JS errors when a segment's configuration page is open. [NWI-3779] [Forum topic]
- Fixed line wrapping when menu is expanded. [NWI-3780] [Forum topic]
- The placement of the Bandwidth control header on the Connection Policies page has been corrected. [NWI-3781] [Forum topic]
- Fixed the colour of the operating mode radio buttons. [NWI-3714] [Forum topic]
- Fixed the Wi-Fi Channel number configuration and notifications when using Wireless ISP (WISP). [NWI-3698] [Forum topic]
- Fixed the USB modem status display. [NWI-3707]
- Fixed the DHCP Address pool size calculation. [NWI-3720] [Forum topic]
- Fixed the highlighting in the Ports and VLANs Settings section when editing settings. [NWI-3789]
- Fixed removal of the DNS server for the WireGuard VPN connection. [NWI-3800]
- Fixed incorrect display of 802.1x Authentication settings without component installed. [NWI-3822]
Fixed communication with remote NTP time server via IP alias. [NDM-3417]
An issue that caused the sent too big header while reading response header from upstream error message to appear in the System log when accessing the web applications via KeenDNS. [NDM-3480]
Resolved a software packet engine (ppe software) incompatibility with incoming traffic having TTL 1. [NDM-3490]
Fixed removing the DNS (ip name-server) record with the default port. [NDM-3493] [Forum topic]
Fixed listing of Ethernet connections. [NDM-3504] [Forum topic]
Fixed an issue that caused the Bridge: wrong port index error message to appear in the System log when displaying the Client lists page. [NDM-3514] [Forum topic]
Fixed saving of Server address field with "camouflage" suffix in SSTP VPN client settings. [NDM-3521]
An issue that caused the https-dns-proxy: curl needed more event than max connections error message to appear in the System log has been fixed. [NDM-3523]

KeeneticOS 4.2.1

04/10/2024

New

Fixed

Fixed issue with saving of Wireguard® connect via setting. [NDM-3467]
Fixed an issue where open Wi-Fi network settings were corrupted after restarting the device. [NDM-3485]
Fixed a problem that caused an unable resolve NAT64 domain error message on a CLAT interface. [NDM-3484]
The following fixes have been applied to the next-generation Web interface.
- Fixed issue with SMS page not switching tabs and displaying modem status incorrectly when multiple modems are connected. [NWI-3749]
- Fixed the status of the Use Syslog checkbox on the Diagnostics page. [NWI-3689]
- Removed overscrolling in the Transition log tab on the Mesh Wi-Fi System page. [NWI-3694]
- Fixed Allow WPS option to be stored in the Wi-Fi System Extender settings. [NWI-3697]
- Fixed autocomplete in the command line interface of the Web CLI page. [NWI-3715]
- Fixed flashing of the segment description. [NWI-3716]
- Fixed the display of the disabled Wi-Fi interface warning on the Wi-Fi Monitor page. [NWI-3717]
- Fixed the display of the Wi-Fi Channel width in Wi-Fi settings. [NWI-3730]
- Fixed layout issues on wide screens. [NWI-3731]
Fixed an issue where the Mesh Wi-Fi System would not work correctly with extenders using KeeneticOS version 3.7. [NDM-3491]
Fixed an issue with the community filtering for SNMPv1 protocol. [SYS-1203]

KeeneticOS 4.2.0

20/09/2024

Fixed

KeeneticOS 4.2 Beta 4

18/09/2024

New

The new public DNS resolver presets from ControlD are now accessible on the Internet Safety page. [NDM-3452]
The opkg disk command line interface (CLI) has been augmented with a new URL option, which enables downloading of the remote OPKG installation archive. [NDM-3453]
- opkg disk ({disk} | {disk}) [{url}] — set {url} of the remote OPKG archive.
  For example: opkg disk storage:/ https://bin.entware.net/aarch64-k3.10/installer/aarch64-installer.tar.gz
A standalone Policy Table mode has been implemented, which disables the automatic addition of static routes to the selected connection policy. [NDM-3445]
- ip policy {name} standalone — enable standalone mode for connection policy {name}.
WireGuard client connections now select a random listen port each time the tunnel reconnects. [NDM-3469]

Fixed

Fixed a memory leak in the VirtualIP IPSec VPN server application. [NDM-3460]
Fixed DNS leakage for custom Connection policies. [NDM-3468]
Fixed the employment of the SA AEAD mode cypher suite in Phase 2 for Site-to-Site IPsec VPN settings after device reboot. [NDM-3470]
The following fixes have been applied to the next-generation Web interface.
- Fixed visual issues in the Transition Log tab on the Wi-Fi system page. [NWI-3658]
- Locked toggles for Access Points on Extenders in the Mesh Wi-Fi system. [NWI-3634]
- Improved the USB storage section in the USB drives and printers card on the System Dashboard. [NWI-3672]
- Fixed the colour contrast of system notifications. [NWI-3667]
- Fixed horizontal scrolling of tables on mobile screens. [NWI-3683]
- Fixed the link in the Current user has no password notification to open in the same tab. [NWI-3719]
- Fixed the column titles of the UPnP Port Forwarding Table. [NWI-3688]
- Fixed the drop-down lists overlapping with buttons. [NWI-3721]
- Added custom port selection to the Proxy server address for Proxy connections. [NWI-3713]

KeeneticOS 4.2 Beta 3

04/09/2024

New

Added a CLI command to unbind the DDNS service requests from the specified interface. [NDM-3420]
- interface {name} dyndns nobind — disable DynDNS bind on interface {name}.
Implemented a CLI command to enable the sending of the client ID for the WireGuard connection peer. [NDM-3427]
- interface {name} wireguard peer {peer} client-id send {value} — set client-id as a decimal {value} of the required hexadecimal ID for Wireguard {peer}.
Added a CLI command to configure the authgroup value for the OpenConnect connection to ensure third-party compatibility. [NDM-3430]
- interface {name} openconnect authgroup {authgroup} — set the {authgroup} value to use with OpenConnect interface {name} connection.
When accessing the Internet over the tunnel, clients of IKEv1/IPsec and IKEv2/IPsec VPN Server applications now follow the connection policy selected for the bound network segment. [NDM-3431]
The new option has been implemented in the next-generation Web interface.
- Added display of mobile broadband signal level metrics for 5G networks. [NWI-3035]

Fixed

Restored the correct work of access to my.keenetic.net restriction from local network segments configured to prohibit services hosted on the Keenetic device. [NDM-3346]
Fixed the display of the Mesh Wi-Fi System clients shifting between bands in the Transition Log. [NDM-3412]
Fixed the application of the routes automatically received by the OpenVPN connection. [NDM-3415]
Fixed the socket leak in nf_queue. [NDM-3428]
Fixed the underlying connection selection for the OpenConnect connections. [NDM-3434]
The following fixes have been applied to the next-generation Web interface.
- Fixed the items displayed in the Destination IP column of the Active Connections tab in Diagnostics menu. [NWI-3633]

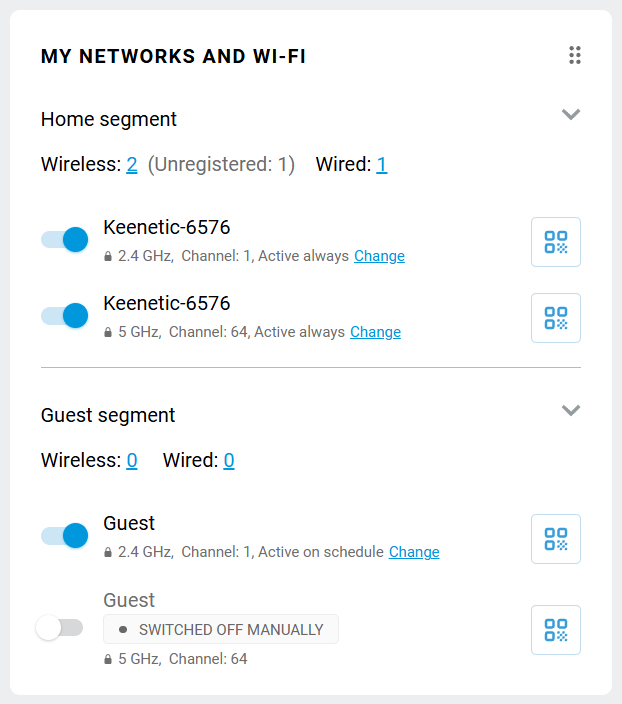

- Fixed the IP address data display on the My networks and Wi-Fi card on the System Dashboard page for Extender devices. [NWI-3636]
- Fixed the display of the Wireless ACL page for Extender devices. [NWI-3640]
- Removed the unnecessary saving of the System Dashboard cards layout when the user logs in. [NWI-3635]
- Fixed the inversion of the Validate SIP proxy when connecting via TLS checkbox on the Phone Lines page. [NWI-3638]
- Fixed the Proxy server address validation for the Proxy Connections on the Other Connections page to permit the 127.0.0.1 host to serve as a proxy server. [NWI-3642]
- Fixed tabs display to fit the screen at lower resolutions better. [NWI-3393]
- Fixed the menu scroll bar positioning on mobile screens. [NWI-3654]
- Disabled the automatic capitalization property for user input fields. [NWI-3655]
- An IP address display was added for OpenConnect VPN connections in a connected state. [NWI-3656]
- Fixed the DNS servers link on the System Dashboard's Internet card. [NWI-3660]
- Fixed the WireGuard connection configuration import to ignore the invalid PersistentKeepalive property. [NWI-3659]
- Fixed the Packet size setting for the Network Connection Test tools on the Diagnostics page. [NWI-3661]
- Fixed the width of notification banners. [NWI-3662]
- Fixed the alphabetical sorting order for the File Browser. [NWI-3663]
- Fixed the System Component Options links from the Applications card on the System Dashboard. [NWI-3664]
- Removed the 5G Only option for Mobile network type for modem connections with no 5G support. [NWI-3629]
- Fixed the copy-to-clipboard control for the Public key in WireGuard connection settings. [NWI-3666]
- Fixed the false positive No new routes found error when importing network routes from the file. [NWI-3670]

KeeneticOS 4.2 Beta 2

08/08/2024

Improved

Fixed

KeeneticOS 4.2 Beta 1

24/07/2024

New

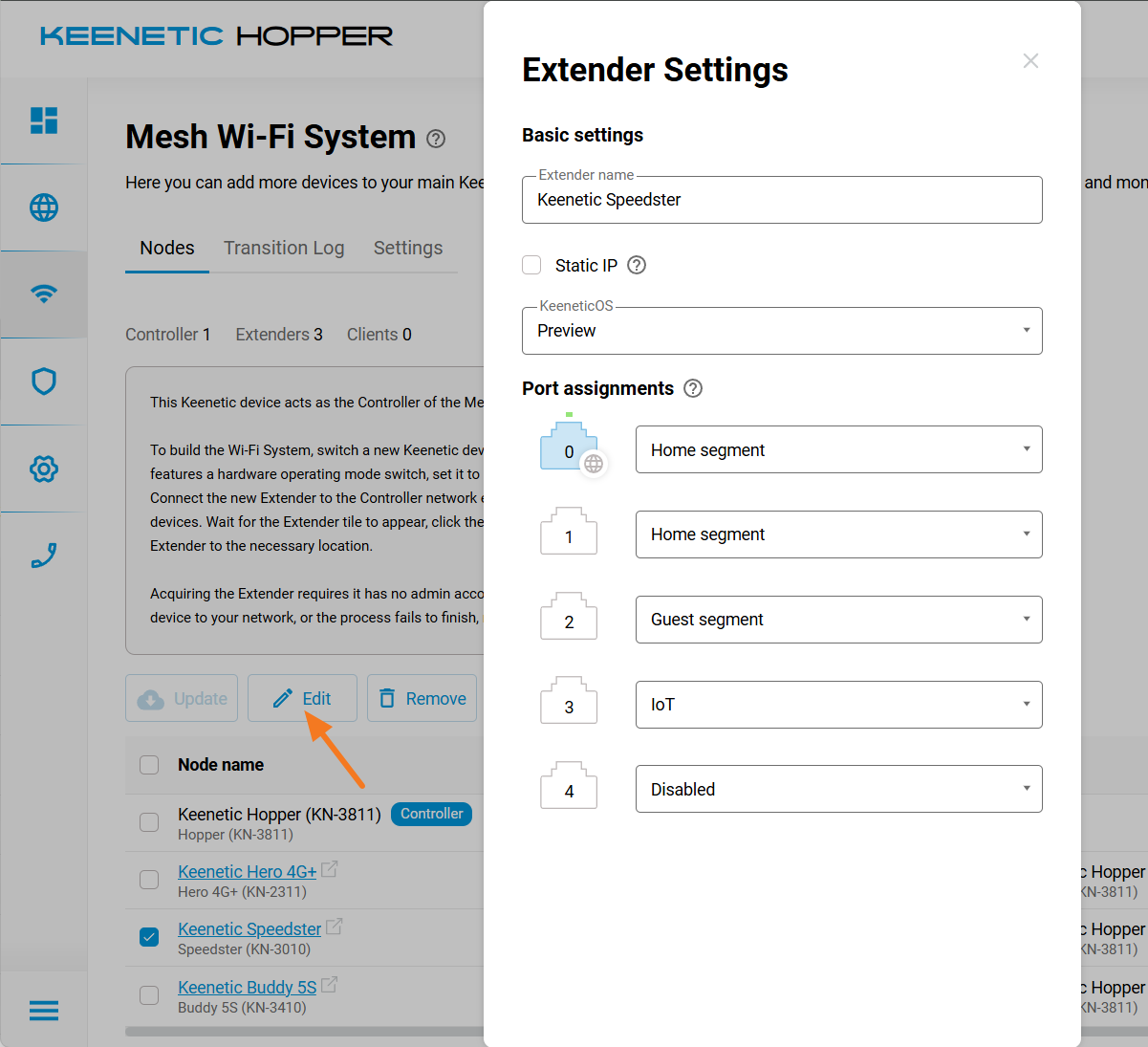

You can now assign Network ports on Extender devices to any configured network segment using the Command Line Interface (CLI). Alternatively, you may wish to disable the Network ports for security reasons. [NDM-3162]
- mws member {member} port {port} [no] access {interface} — assign {port} on a {member} node to access an {interface} segment;
- mws member {member} port {port} [no] disable — disable {port} on a {member} node.
Enhanced software packet processing engine to enable acceleration for traffic with a manually set TTL value. [SYS-1157]

The new IntelliQoS option allows 802.1p priority code point (PCP) mapping for egress packets in the command line interface (CLI). [NDM-3318]
interface {name} vlan qos egress map {priority} {pcp}
- {priority} — NTCE priority queue number. Use 0 to assign the same PCP value to any outgoing packet on the interface;
- {pcp} — set the new value of the 802.1p priority code point.
The implementation of a ZeroTier connection now includes accepting managed routes and DNS servers published on the ZeroTier network controller. [NDM-3319]

A new CLI grep extension is now available to filter the output of the show command. [NDM-3075]
- grep [-A <n>] [-B <n>] [-C <n>] regex — trim the show command output using the regex regular expression.
  -A — number of XML nodes to show after match.
  -B — number of XML nodes to show before match.
  -C — displayed XML cluster depth.
For example:
```
(config)> show interface | grep address

Interface, name = "Home"
          address: 192.168.2.1
             ipv6:

Interface, name = "Guest"
          address: 10.1.30.1
             ipv6:

(config)> show system | grep cpuload

          cpuload: 5
```

A new segment default policy for hosts has been implemented and is now enabled by default. Registered devices with this connection policy assigned will follow the default connection policy of the network segment they are connecting to. [NDM-2237]
- ip hotspot host {MAC} conform — set host with specified {MAC} to follow the current segment's connection policy.
The new application filtering option is now available in the Application traffic analyser service via command line interface (CLI). This option allows to create a filtering profile, add required applications, assign a host or segment to the filtering profile and enable the operation schedule. [NDM-3069]
- ntce filter profile {name} application {application} — add an application to the profile.
- ntce filter profile {name} group {group} — add an application group to the profile.
- ntce filter profile {name} type {type} — set the profile type, which can be permit or deny.
- ntce filter profile {name} description {description} — set the profile description.
- ntce filter profile {name} schedule {schedule} — set the profile schedule.
- ntce filter assign host {host} {profile} — assign a profile to a registered host (MAC address).
- ntce filter assign interface {interface} {profile} — assign a profile to an interface.
The new option to automatically register hosts in the Home segment is now available (enabled by default). You can disable this behaviour using the command line interface (CLI). [NDM-3101]
- ip hotspot auto-register disable — disable automatic host registration for the Home segment.
The new OpenConnect VPN server system component is now available, providing a remote SSL VPN connection to your Keenetic. [NDM-3141]
- oc-server interface {interface} — bind OpenConnect server to an interface.
- oc-server pool-range {begin} {size} — set OpenConnect address pool.
- oc-server static-ip {name} {address} — set static IP address for a user.
- oc-server mtu {mtu} — set OpenConnect server MTU.
- oc-server multi-login — enable multiple connections with the same user account.
- ip nat oc — enable NAT for OpenConnect clients.
- service oc-server — enable OpenConnect service.
The Keenetic Phone Station system component now supports the filtering of incoming calls. [VOX-271]
- nvox sip {id} whitelist {digitmap} — create whitelist for SIP {id} with specified {digitmap};
  for example: nvox sip 1 whitelist +1111x.|+2222x.|2389x.|32756 — allows phone calls with numbers starting from +1111, +2222, 2389 and an 32756 number.
- nvox sip {id} blacklist {digitmap} — create blacklist for SIP {id} with specified {digitmap};
  for example: nvox sip 1 blacklist +3333x. — block phone number starting from +3333.
- nvox sip {id} enable-whitelist — enable whitelist for SIP {id}.
- nvox sip {id} enable-blacklist — enable blacklist for SIP {id}.
- show nvox sip {id} whitelist — display allowlist settings.
- show nvox sip {id} blacklist — display blocklist settings.
The Keenetic Phone Station system now supports import of the phonebook from a file. [VOX-326]
- nvox phonebook import {filename} {mode} — import contacts in the vCard format.
  - filename — *.vcf filename;
  - mode — import mode: replace, overwrite, extend, or duplicate.
- nvox phonebook delete — delete all contacts from the phonebook.
- nvox sip {id} enable-whitelist-phonebook — enable phonebook as an allowlist filter for incoming calls.
- show nvox phonebook — display all phonebook records.

Improved

Improved host detection using EchoReq in the ICMPv6 protocol to ensure correct operation of port forwarding rules for the IPv6 protocol. [NDM-3265]
Optimized the memory consumption of the SMB file and printer sharing system component when using the Cx File Explorer mobile application. [NDM-2927]
Added SMS subsystem support for Fibocom FM350 and Quectel RM500U modem modules. [NDM-3267]
The Phase 2 of the site-to-site IPsec tunnel now supports the SHA512 HMAC algorithm. [NDM-3269]
- crypto ipsec transform-set {name} hmac esp-sha512-hmac — enable esp-sha512-hmac algorithm for transform-set {name}
Added MAC address and registration time information to the name of devices registered automatically. This will help you easily identify and keep track of the devices on your network. [NDM-3253]

A new read/send timeout option allows the session lifetime for Web applications of the KeenDNS proxy service to be set via the command line interface (CLI). [NDM-3157]
- ip http proxy {name} timeout {timeout} — set {timeout} for KeenDNS {name} proxy.
The WireGuard advanced security configuration (ASC) parameters are now available in the command line interface (CLI). [NDM-3202]
- interface {name} wireguard asc {jc} {jmin} {jmax} {s1} {s2} {h1} {h2} {h3} {h4} — set additional ASC parameters for WireGuard {name} tunnel.

Disabling Port Forwarding (ip static) rules now forces matching active sessions to be dropped. [NDM-3067]
Implemented new options to preserve Referer and Origin headers for Web applications of the KeenDNS proxy service in the command line interface (CLI). [NDM-3089]
- ip http proxy {name} preserve-referer — preserve Referer header for {name} of the web proxy rule.
- ip http proxy {name} preserve-origin — preserve Origin header for {name} of the web proxy rule.
A NetFlow monitor system component can now collect IPv6 traffic information and monitor network flows. [NDM-3109]
The MOBIKE extension (RFC 4555) has been enabled for both the IKEv2/IPsec VPN Server and the IKEv2 client. [NDM-3164]

KeeneticOS 4.2

KeeneticOS release notes for Keenetic Giga (KN-1011) in the Preview Channel

What’s new?

KeeneticOS 4.2.5

Fixed

KeeneticOS 4.2.4

Fixed

KeeneticOS 4.2.3

New

Fixed

KeeneticOS 4.2.2

New

Improved

Fixed

KeeneticOS 4.2.1

New

Fixed

KeeneticOS 4.2.0

Fixed

KeeneticOS 4.2 Beta 4

New

Fixed

KeeneticOS 4.2 Beta 3

New

Fixed

KeeneticOS 4.2 Beta 2

Improved

Fixed

KeeneticOS 4.2 Beta 1

New

Improved

Fixed

Search results

KeeneticOS updates — Preview Channel

KeeneticOS 4.2

KeeneticOS release notes for Keenetic Giga (KN-1011) in the Preview Channel

What’s new?

KeeneticOS 4.2.5

Fixed

KeeneticOS 4.2.4

Fixed

KeeneticOS 4.2.3

New

Fixed

KeeneticOS 4.2.2

New

Improved

Fixed

KeeneticOS 4.2.1

New

Fixed

KeeneticOS 4.2.0

Fixed

KeeneticOS 4.2 Beta 4

New

Fixed

KeeneticOS 4.2 Beta 3

New

Fixed

KeeneticOS 4.2 Beta 2

Improved

Fixed

KeeneticOS 4.2 Beta 1

New

Improved

Fixed

Search results
